SERVO VOLTAGE STABILIZER (3-Phase)

Request A Quote Download Catalogue

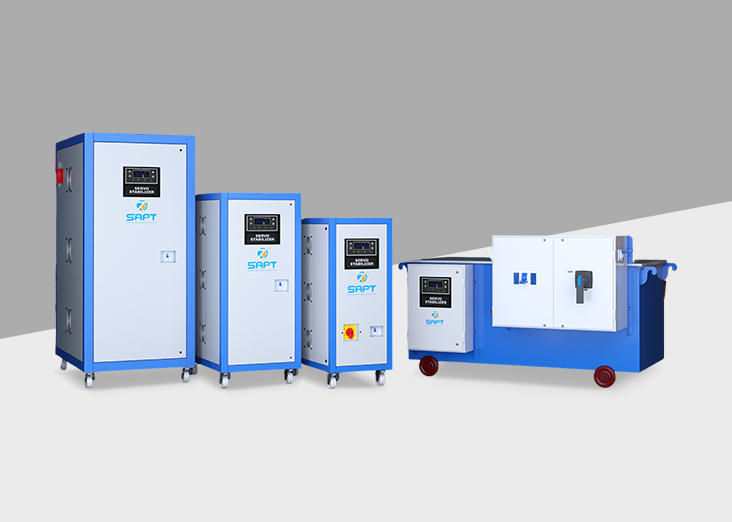

Servo Voltage Stabilizer (3-Phase)

Features

  • Fast correction speed up to 60V/sec. Variable speed servo motor and proportional control circuit provide a response time of 10msec to correct voltage fluctuations without noise or oscillations in output
  • Reduced power loss and resultant lower running cost yield higher cost savings and help the customer recover the cost difference in few months
  • Specially designed high performance controller based control circuit for ultra high reliability
  • All parameter like O/P V, I/P V, high, low cut-off, time delay, overload, set by front control
  • Accuracy ± 1% from no load to full load
  • Plug and play single control card for easy serviceability
  • Auto/Manual operation facility
  • High efficiency > 98%

Specification

Capacity 6kVA to 100kVA Air Cooled (Three Phase)
50kVA to 2000kVA Oil Cooled (Three Phase)
Input Voltage Range 300-460V, 340-480V, 360-460V &
340-460V AC 3-Phase 50Hz Phase to Phase
System 4 Wire
Input Frequency 47 to 53 Hz
Output Voltage Adjustable 380 to 415V AC
Speed of Correction Up to 60V/Sec
Output Voltage Regulation ± 1% (No Load)
Ambient Temperature 0 to 55 °C
Overload Capacity 1.2
Waveform Distortion True Reproduction of Input
Insulation Class F
Short Circuit Period & Percentage 300% for 250 msec
Climate Condition 90% Rh Max. Non Condensing at 50 °C
Type of Cooling Natural Air cooled up to 100kVA and
Oil Cooled up to 2000kVA
Mode of System Fully Automatic/Manual
Protection Low Voltage Protection, High Voltage Protection and single Phasing Prevention through contactor at O/P, Overload Protection,
Short-circuit Protection and power ON/OFF of SCVS through MCB/MCCB at Input
Optional Features Bypass switch at Input to bypass the equipment in case of emergency
