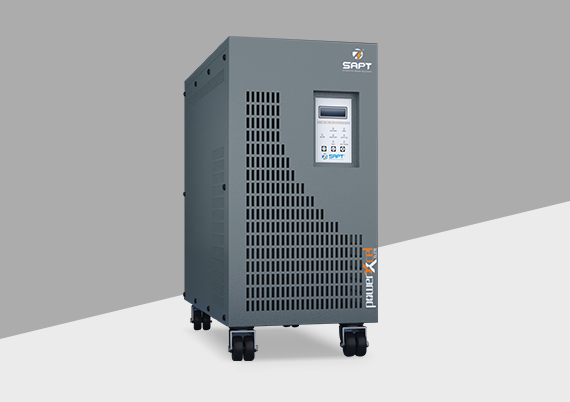

SAPT presents the PowerXcel ELITE Series, a high-performance, single-phase online UPS with a built-in isolation transformer, and modular IGBT-based Rectifier and inverter.
Designed for critical applications, this UPS ensures pure, stable, and noise-free power, offering superior protection for sensitive electronic equipment.
| CAPACITY | kVA | 3kVA | 5kVA | 7.5kVA | 10kVA |
|---|---|---|---|---|---|
| WATT | 2.7kW | 4.5kW | 6.75kW | 9kW | |
| TYPE | Low Frequency Isolation Transformer Based | ||||
| INPUT | Phase | Single Phase (IP+N) | |||
| Input Voltage Range | 230VAC ±25% | ||||
| Input Frequency | 50Hz ± 10% | ||||
| Input Ripple | < 5% | ||||
| Soft Start | 0 ~100 % 5 Second | ||||
| OUTPUT | Nominal Voltage | 220/230/240V AC, (IP+N) | |||
| Regulation | ±1% for Linear & Non-Linear Load | ||||
| Output Frequency | 50HZ ± 0.5% | ||||
| Crest Factor | > 3:1 | ||||
| Power Factor | 0.8 | ||||
| Output THD | Linear Load < 3%, Non-Linear Load < 5% | ||||
| Efficiency | Up to 90% (Full Load) | ||||
| BATTERY | DC Voltage | 96 | 180 | 180 | 180 |
| Nur-nber of Battery | 8 | 15 | |||
| Charging Current | 1-10 Amp (Settable) | ||||
| BYPASS | Phase | Single Phase (IP+N) | |||
| Manual | Maintenance Bypass Switch Provided | ||||
| Static | No Break (Optional) | ||||
| PROTECTION | Input Protection | Input Voltage, Frequency Under/Over limit Protection | |||
| Output Protection | Over Current, Short-circuit, Over/Under Voltage | ||||
| Battery Protection | Over Charge, Over Discharge protection | ||||
| Temperature Protection | Inverter Over Temperature Protection | ||||
|
GENERAL PARAMETERS | Working Environment | Temp: 10-550 C, Relative Humidity : 30-90% | |||
| Display | LCD + Physical Button | ||||
| Alarm | Low Battery, Abnormal AC Input, UPS Failure, etc. | ||||
| Noise (dB) | < 55 | ||||
| Dimensions (L*W*H) | 412 X 254 X 528 | 586 X 304 X 561 | |||
| Weight (kg) | 42 | 52 | 77 | 87 | |
