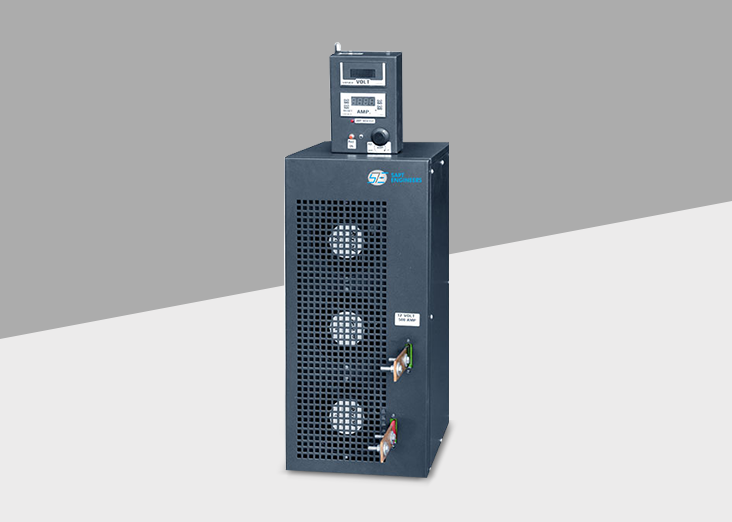

Electro Plating Rectifier

In case of power failure, after power resuming, the rectifier could switch on automatically and start rising up to set current.
Keep last time setting mode and output value when power-on again
Constant current, constant voltage setting
Local, remote control setting
Output current or voltage setting
Amperehour control for dosing system (Optional)
Time setting
Timer reset
Amperehour reset
START/STOP
Rectifier stop delay time setting
Protection shield function
DC output voltage, current, display
Rectifier running status display
Alarm indication and sound
Alarm type: Audible and visual alarm

Rectifier type	IGBT high frequency rectifier, modular structure
Working duty	100% 24 hours continuous running
Supply voltage	415W AC ±10% 3 phase 3 wire, 50-60Hz
Rated output voltage	DC 8V, 12V
Rated output current	DC 500, 750, 1000, 1500, 2000 Amp
Output range	0-100%
Control Accuracy	≤±0.5%
Power factor	≥0.94
Efficiency	typical 90% at rated output
Current ripple	≥2% of rated output current at constant current mode, low ripple in whole range provide good plating quality.
Control mode	constant current / constant voltage
Cooling	Forced air cooling,
Protections	Output overcurrent protection Short circuit protection Over heat protection input over/under voltage protection IGBT Driving protection
Ambient temperature	Max. 400, derated operation up to 5011
Altitude	≤2000m altitude. 3De-rated operation if higher.
Humidity	Max. 90% RH, non-condensing
